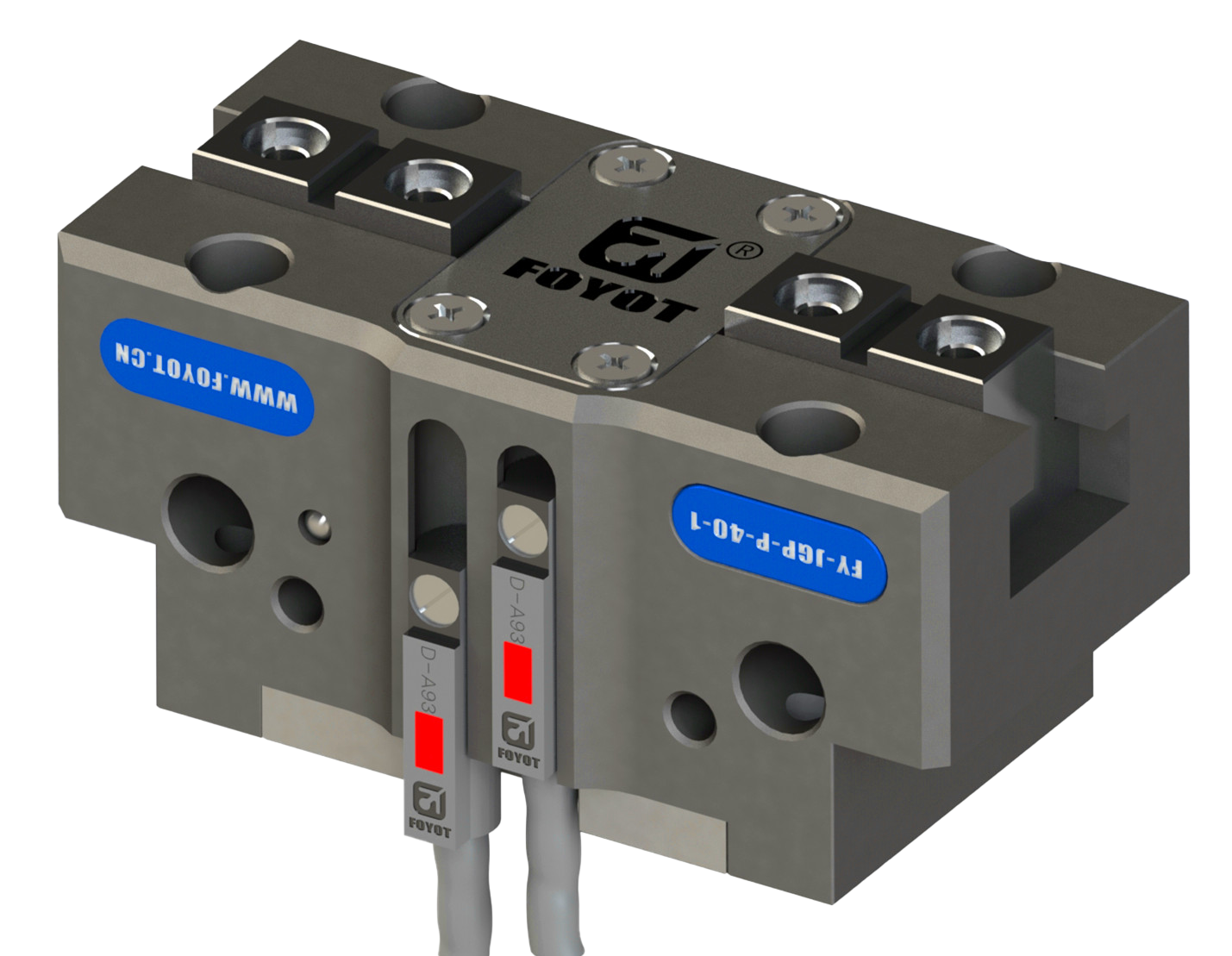

名稱：氣動平行兩爪

Name:Pneumatic paral lel two claws

型號(ModeI):FY-JGP40-1

P:空氣壓力P:Air Pressure(bar)

L:到作用點距離L:Exertion Length(mm)

開閉範圍(Stoke)：2*2.5=5.0mm

產品重量(Weight):0.083kg

最大附件長度(Max.length attach):60mm

配管連接?(Fitting size):M3

理論夾持力-開（Gripping force:Open):180N

理論夾持力-閉(Gripping force:Close):200N

單循環空氣消耗量（Air consumption per cycle):4cm³

開閉時間(Closeing/Opening time):0.01/0.01sec

重復精度(Repeat accuracy):0.01mm

連續使用次數(Continuation usage amount):60

使用氣壓(Operating pressure):3-8bar

周圍溫度(Ambient temperature:-5to90℃(-10to130℃)

潤滑(Lubrication):不需要(Needless)

根據EC60529標準安全防護：P40

Safety protection according to IEC60529 standard:IP40

所有數據在6Bar時測量(All data were measured at6Bar)

重復精度：連續動作100次以後的檢測值

After 100 consecutive strokes to end positions
